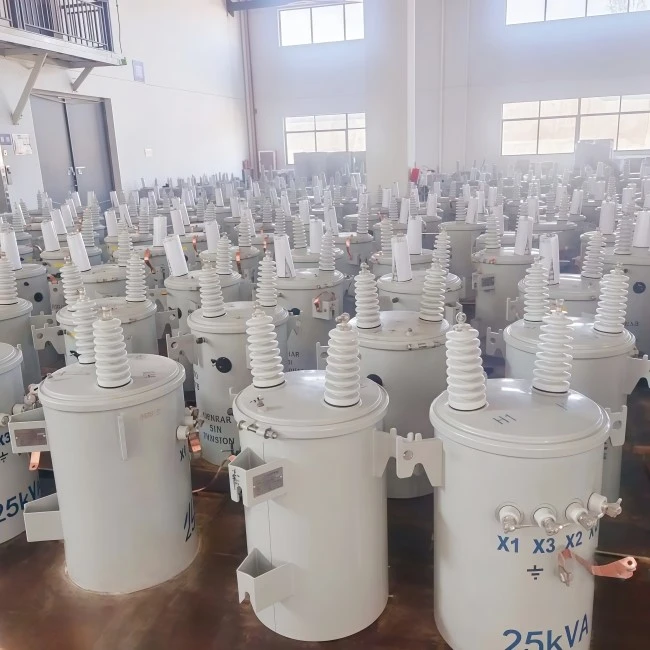

Single phase pole mounted distribution transformers are key equipment in distribution networks, especially suitable for areas with low load density. Its structure is simple, installation is flexible and cost is low, making it an ideal choice for rural and urban power distribution systems.
Introduction:

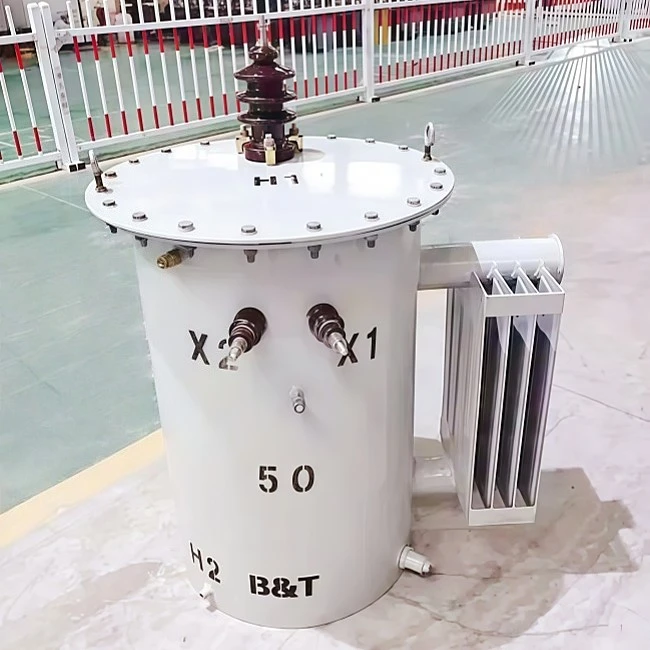

Single phase pole mounted distribution transformer is an electrical device that can be installed on a utility Pole. It can reduce high voltage to low voltage, making it convenient for use in households, businesses and small industries. It is widely used in the power distribution systems of rural areas, towns and cities. Its structure is very simple, so it is easy to install and the maintenance cost is also very low.
Parameter:
| Description | Range |
| Rated capacity | 5-167 kVA |
| High voltage | 6-35 kV |
| Low voltage | 220-480 V |
| Weight | 150-800 kg |
Basic structure:
Iron core:The commonly used transformer cores are generally made of silicon steel sheets, which can reduce electromagnetic losses.
Winding:Single phase pole mounted distribution transformer includes high-voltage side windings and low-voltage side windings, and the common materials are copper wire or aluminum wire.
Fuel tank:Mineral oil is used to achieve the purposes of insulation and cooling. If there is an environmental protection requirement, vegetable oil can be used.
Shell:When there are high requirements for rust prevention and corrosion resistance, a casing should be carried. It is equipped with heat sinks for heat dissipation.
