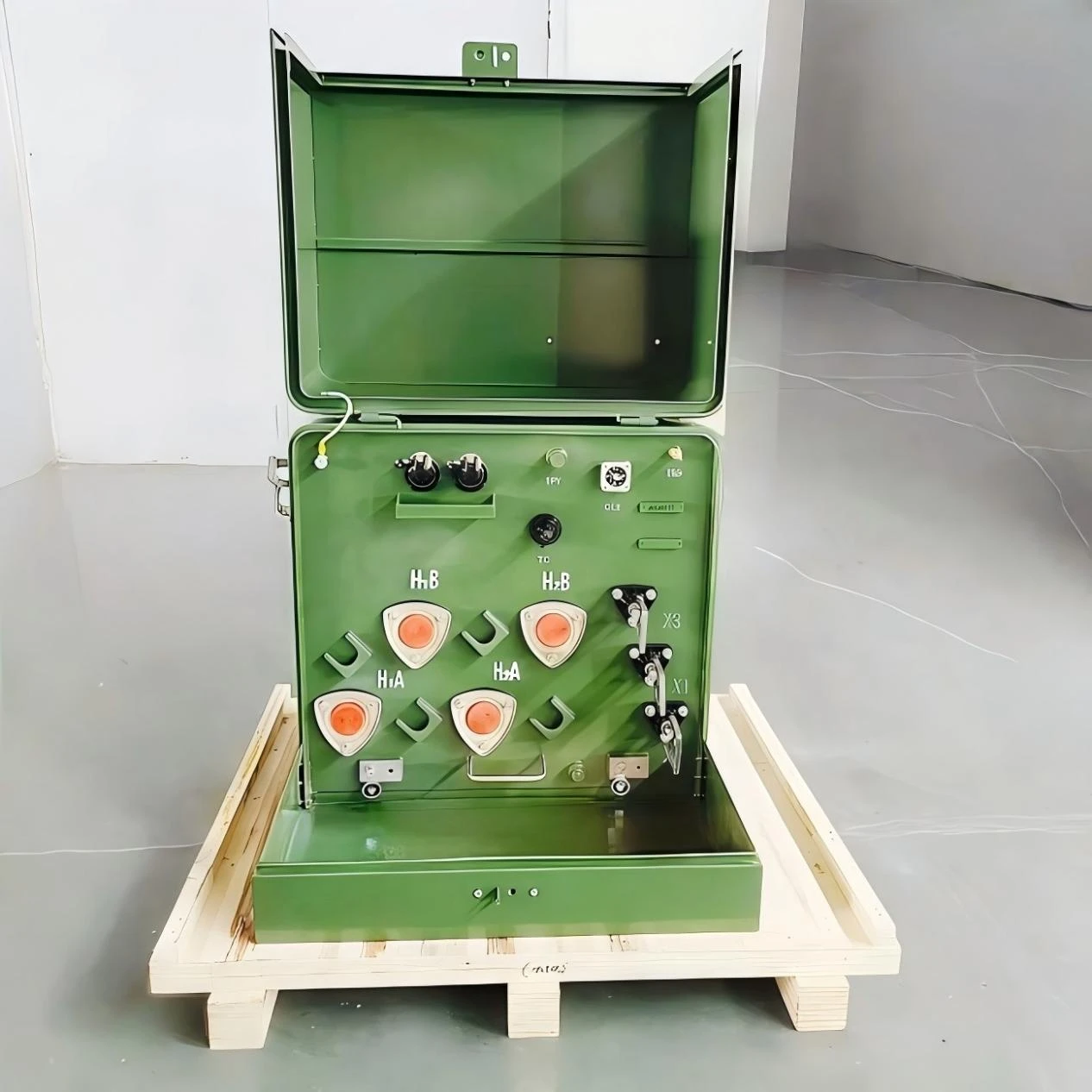

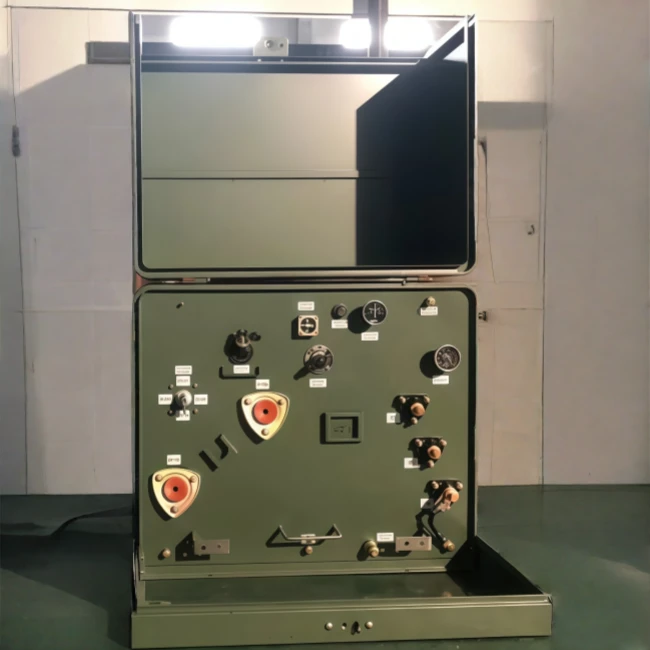

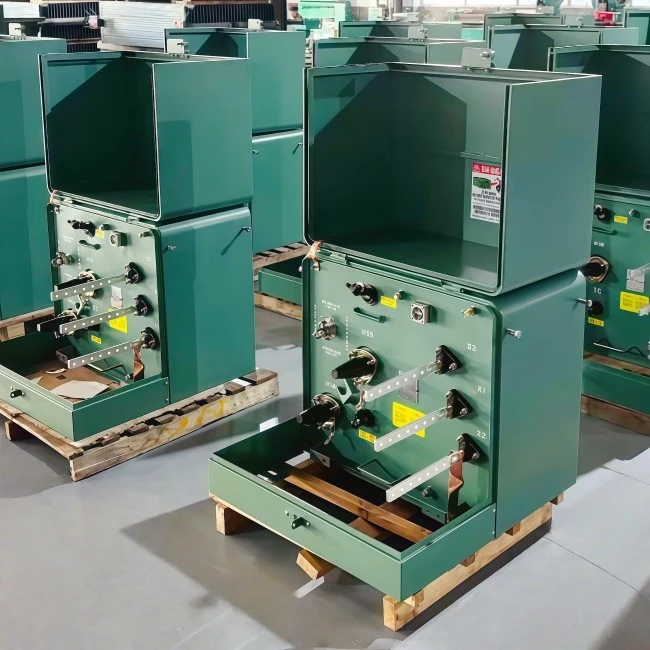

Single phase 75 kva pad mount transformer is a fully sealed and maintenance-free outdoor power distribution equipment. This transformer adopts an oil-immersed cooling structure and is directly installed on a concrete foundation, suitable for an ambient temperature range of -30°C to +40°C.
Introduction:
Single phase 75 kva pad mount transformer is an outdoor installation transformer used in power distribution systems, usually installed on a concrete base, and is suitable for residential, commercial or industrial power usage scenarios. With a rated capacity of 75 kVA and a single-phase design, it is suitable for voltage conversion and distribution requirements.
Electrical parameters:
The capacity is 75kVA, which can meet appropriate load requirements.
There are two options available: high voltage and low voltage, and customization can be made according to user requirements. The commonly used voltages are 24.94kV, 13.8kV and 1.32kV, and the low voltage can be selected from 120 to 600V.
The frequency is generally 60Hz, meeting the energy efficiency standards.
Structural features:
Shell: The NEMA 3R type shell is adopted, made of thick steel plate and treated with powder coating. It has the ability to be tamper-proof and withstand harsh weather, and can be used in indoor or outdoor environments.
Installation method: Install on the concrete base on the ground. This installation method is stable and easy to maintain.
Internal structure: All components such as the fuse for high-voltage load switch protection are placed in the same oil tank as the transformer core and windings, featuring a compact structure.
Windings and cores:
Winding material:
The winding material can be selected from aluminium or copper. Aluminum windings are lower in cost and lighter in weight, while copper windings have better electrical conductivity and heat dissipation performance.
Core material:

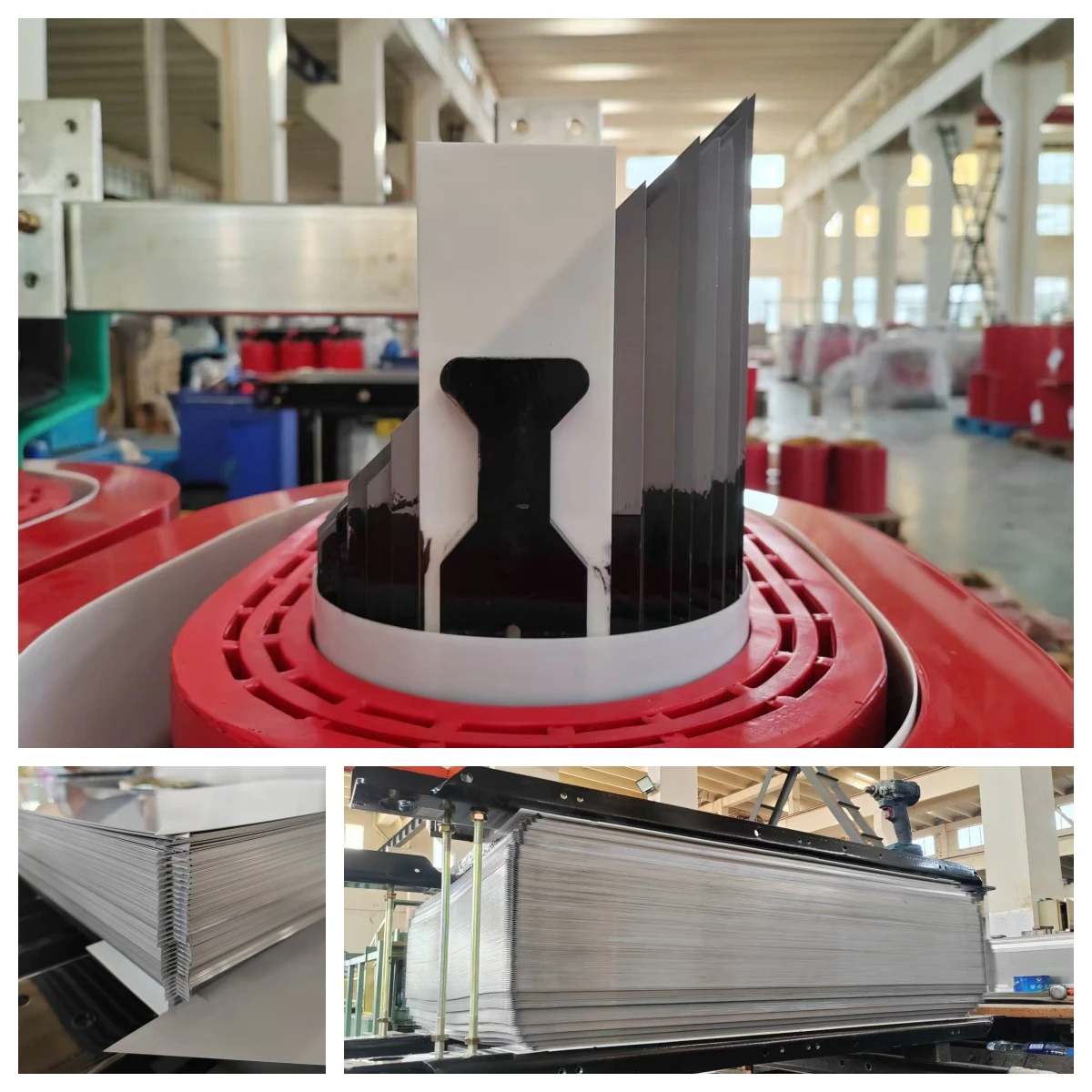

The core is usually made of cold-rolled silicon steel sheets, which have a high magnetic permeability and low hysteresis loss, and can improve the efficiency of the transformer.
Cooling and insulation:
Cooling method: Oil-immersed self-cooling is mostly adopted, which utilizes the natural convection and radiation of insulating oil for heat dissipation, without the need for additional cooling equipment.
Insulating medium: Generally, mineral oil is used as the insulating fluid. There are also sustainable and biodegradable dielectric fluids, which have good fire resistance and a long service life.
Protective device: Dual fuses are adopted for protection. The insertable fuse is a double-sensitive fuse, which is used to protect against short-circuit faults occurring on the secondary side of the box-type transformer. The backup current-limiting protection fuse is used to protect the faults occurring inside the box-type transformer and to safeguard the high-voltage side.
