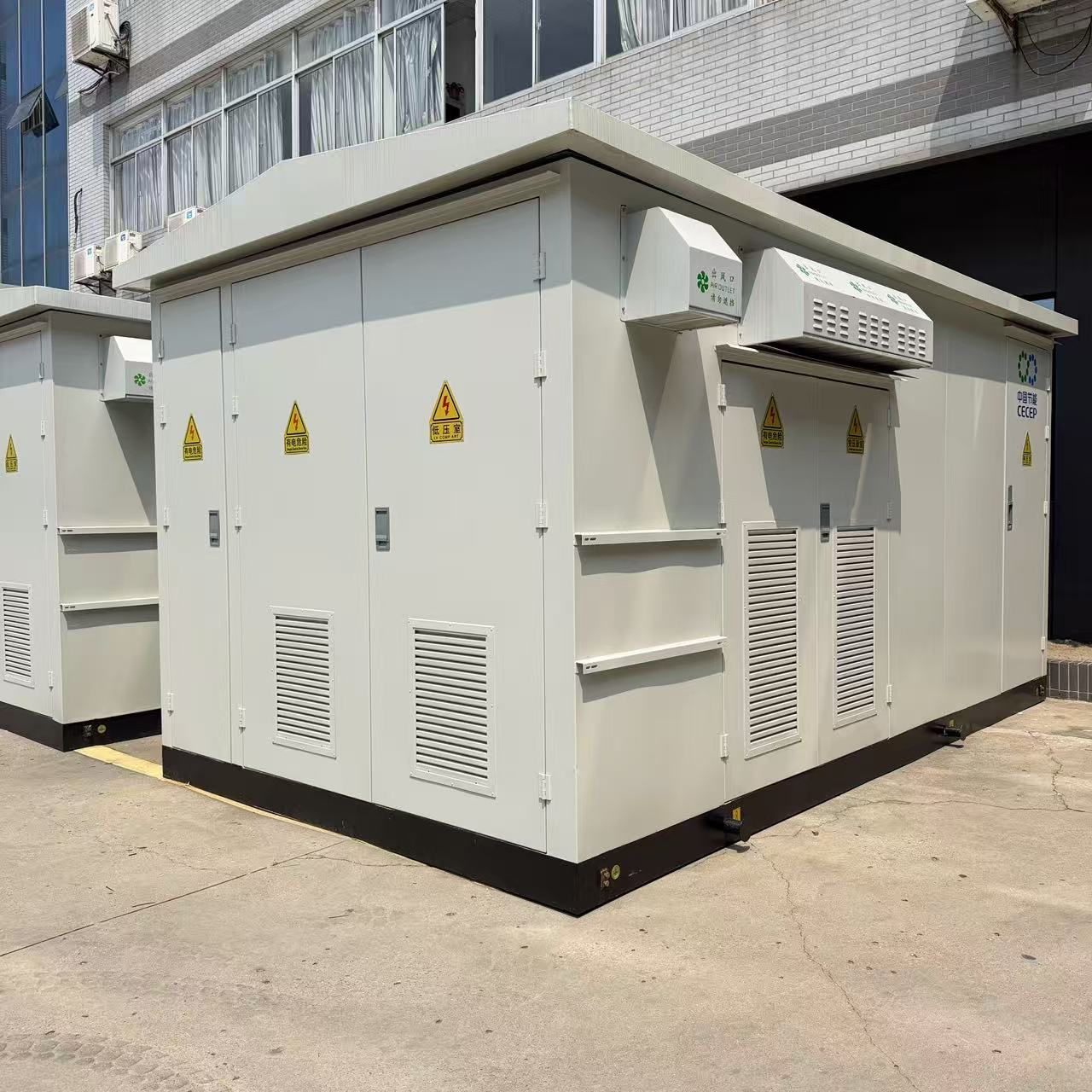

Prefabricated compact substation, with modular design, rapid deployment and strong adaptability, has become the preferred choice for modern power construction. Its factory-based manufacturing ensures quality, standardized construction reduces costs and intelligent design enhances efficiency – making it particularly suitable for urban distribution networks, renewable energy projects and emergency power supply.
Technical Features
Modular design allows the substation to be flexibly assembled like building blocks, so that it can meet different voltage levels and capacity requirements.
Factory-based manufacturing ensures quality and craftsmanship, and eliminates weather-related constraints and construction uncertainties inherent in traditional civil-built substations.
Standardized construction significantly shortens the design cycle and reduces project costs.

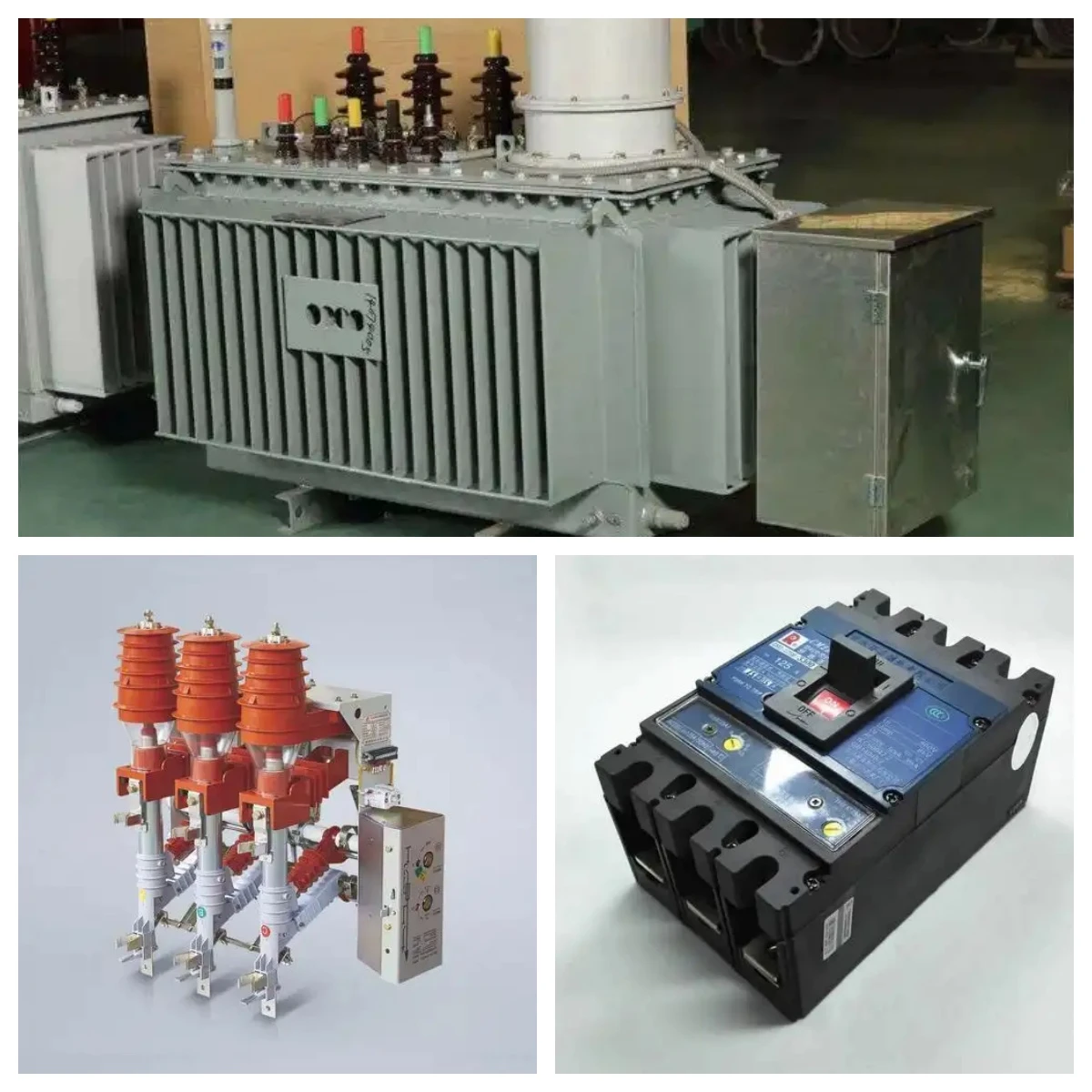

Transformer & High-voltage Side Protection Device & Low-voltage Side Main Switch
Structural Advantages
Enclosure – a fully sealed steel structure with certified resistance to wind, rain, dust and corrosion; temperature adaptability spans -25℃ to +40℃ (standard) or -40°C to +50°C (extended)
Interior – a complete set of primary/secondary equipment and auxiliary systems; standardized interfaces reserved for quick on-site installation
Smart Device – provides functions such as remote monitoring, automatic adjustment and predictive maintenance alert to improve operational efficiency

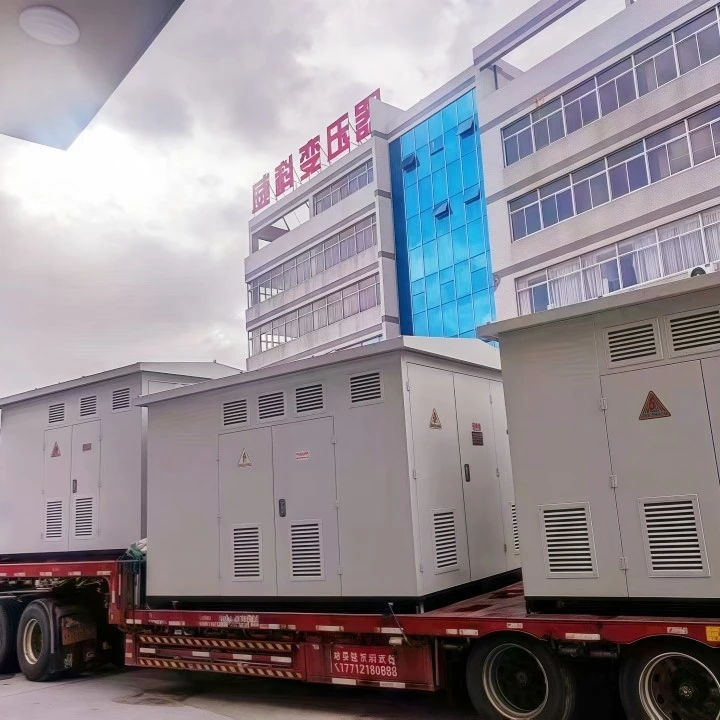

Quality-approved prefabricated compact substations have been loaded and are ready for delivery to the client.
Benefits in Application
In the construction of urban distribution networks, prefabricated compact substation maximizes limited spatial resources and addresses siting challenges for urban substation. Its compact design allows for deployment in space-constrained commercial districts and residential areas, and even in underground or semi-underground layouts.
For renewable energy projects such as wind and solar farms, prefabricated compact substation demonstrates an irreplaceable value. Typically located in remote areas with harsh environments and poor construction conditions, these projects benefit from having over 90% of work completed in factories – requiring only on-site lifting and cable connections.
In emergency power scenarios, the rapid deployment feature of prefabricated compact substation is particularly prominent. When power is interrupted due to natural disasters or emergencies, the substation can be transported, installed and debugged within 72 hours to realize swift power restoration.
