10kV distribution transformer

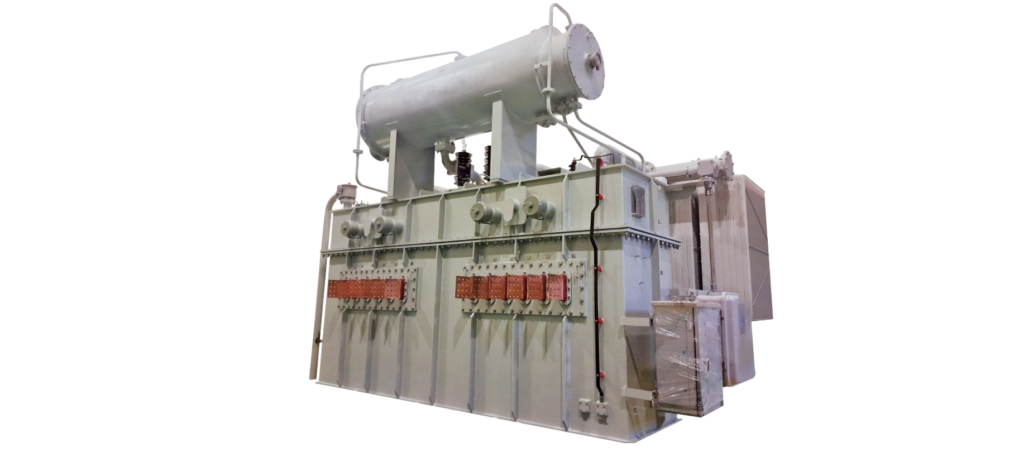

35kV rectifier transformer
Specification parameter capacity 5000-20000kVA Voltage 35/0.5~1kV Phase shift Angle 0~30 Impedance 5.5~10%

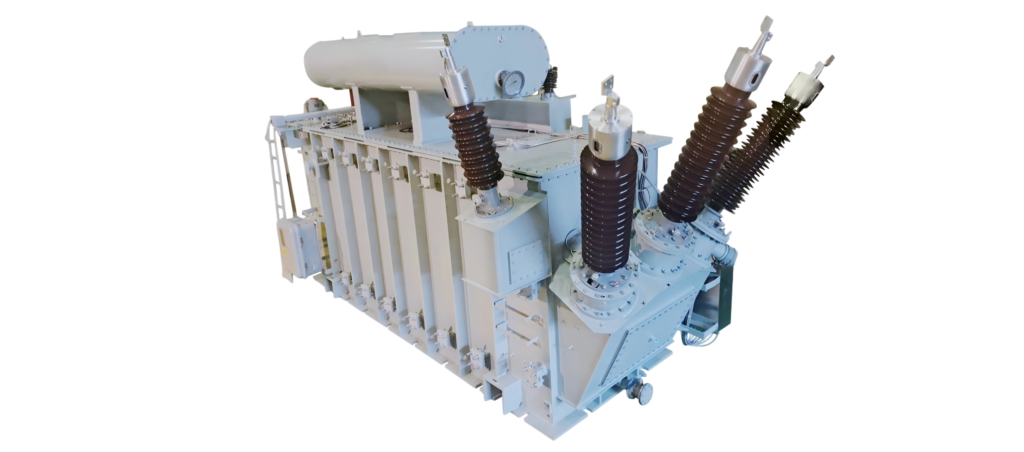

110kV vehicle mobile transformer
Specification parameter Capacity 16000-63000kVA Voltage 110/35kV Vector group YNd11 Impedance 10.5%

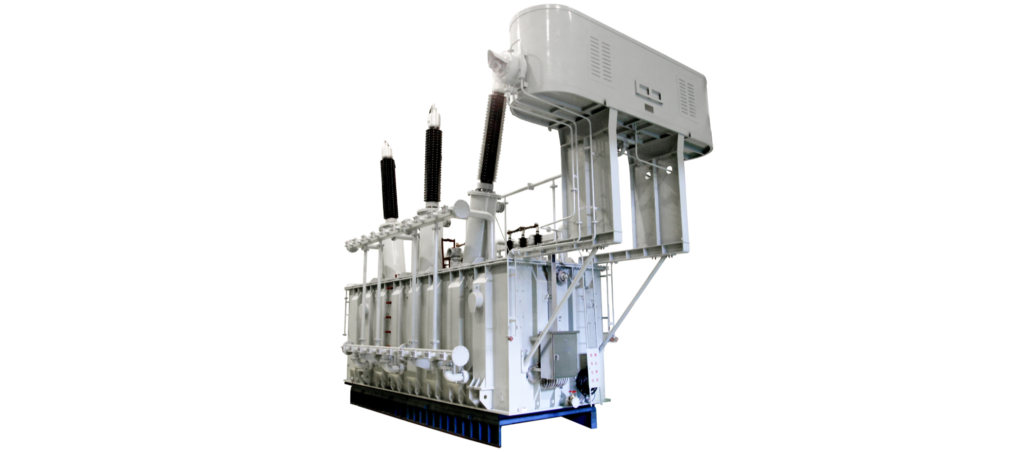

220kV double split transformer
Specification parameter Capacity 100000-300000kVA Voltage 220/35kV Vector group YNd11-d11 Impedance 15~25% (semi-crossing) Capacity ratio 100/50+50

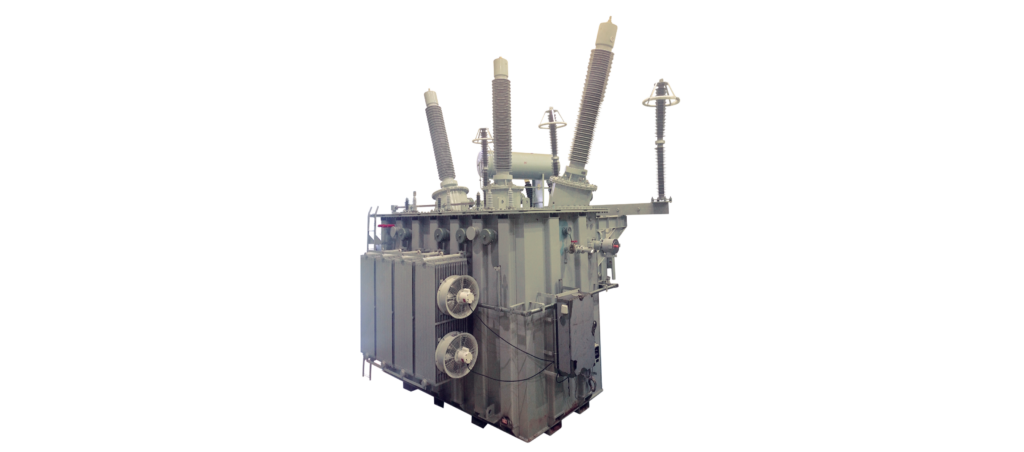

230kV vegetable oil transformer
Specifications Capacity 31500-420000KVA Voltage 230/6.3~35KV Vector group YNd11 Impedance 12~14%
500kV transformer
Specification parameter Capacity 100MVA~400MVA Voltage (500/√3)/(230/√3))/35KV Vector group Ia0i0 Impedance High-medium 12% High-low: 42~46% Medium-low: 28~30% Capacity ratio 100/100/30
